Lakukan konfigurasi supaya PC LAN dapat ping ke server.

- Konfigurasi interface dan routing pada Router0

Router(config)#int fa0/0
Router(config-if)#ip add 192.168.1.1 255.255.255.0
Router(config-if)#no sh
Router(config-if)#int se2/0
Router(config-if)#ip add 192.168.50.1 255.255.255.0
Router(config-if)#no sh
Router(config-if)#ip route 192.168.2.0 255.255.255.0 192.168.50.2

- Konfigurasi interface dan routing pada Router1.

Router(config)#int se2/0
Router(config-if)#ip add 192.168.50.2 255.255.255.0
Router(config-if)#no sh
Router(config-if)#int fa0/0
Router(config-if)#ip add 192.168.2.1 255.255.255.0
Router(config-if)#no sh
Router(config-if)#ip route 192.168.1.0 255.255.255.0 192.168.50.1

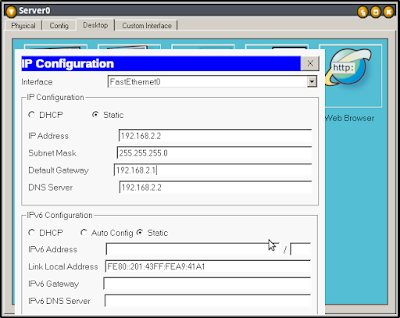

- Berikan IP pada server terlebih dahulu.

 Coba cek web server melalui browser pada PC LAN.

- Cek ping dari PC LAN ke web server.

PC>ping 192.168.2.2

Pinging 192.168.2.2 with 32 bytes of data:

Reply from 192.168.2.2 : bytes=32 time=0ms TTL=126
Reply from 192.168.2.2 : bytes=32 time=0ms TTL=126
Reply from 192.168.2.2 : bytes=32 time=0ms TTL=126
Reply from 192.168.2.2 : bytes=32 time=0ms TTL=126

Ping statistics for 192.168.2.2 :
        Packets: Sent = 4, Received = 0, Lost = 4 (100% loss),
Approximate round trip times in milli-seconds:
        Minimum = 0ms, Maximum = 0ms, Average = 0ms

PC>

- Sekarang konfigurasikan standard access list agar PC LAN tidak dapat mengakses web server. Set access list pada router dan interface yang paling dekat dengan destination.

Router(config)#access-list 10 deny 192.168.1.0 0.0.0.255
Router(config)#access-list 10 permit any
Router(config)#int fa0/0
Router(config-if)#ip access-group 1 out

- Cek ping dan akses browser dari PC LAN ke web server.

PC>ping 192.168.2.2

Pinging 192.168.2.2 with 32 bytes of data:

Reply from 192.168.1.2 : Destination host unreacable
Reply from 192.168.1.2 : Destination host unreacable
Reply from 192.168.1.2 : Destination host unreacable
Reply from 192.168.1.2 : Destination host unreacable

Ping statistics for 192.168.2.2 :
        Packets: Sent = 4, Received = 0, Lost = 4 (100% loss),

PC>

Cek access list pada Router1.

Router#show access-lists
Standard IP access list 10
deny 192.168.1.0 0.0.0.255 (64 match(es)) permit any (5 match(es))
Router#

Pada standard access list, semua service akan diblok, baik UDP untuk akses
browser atau ICMP untuk ping
